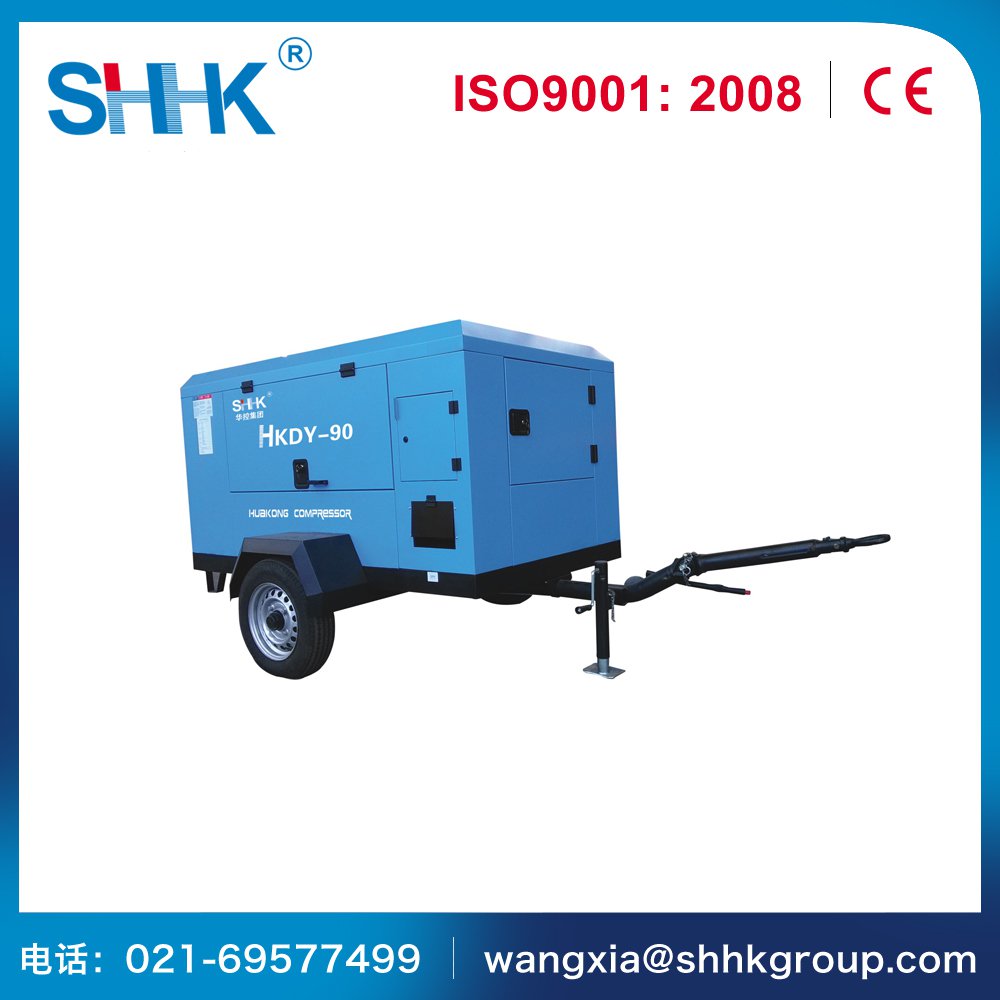

HKDY90移動螺桿空壓機Portable screw air compressor
移動 螺桿 空壓機
品牌
華控型號
HKDY90瀏覽次數
178 次所在地區
上海 上海 嘉定區參考最低價
數量
100
———— 推薦商品 ————
商品介紹
華控柴油移動螺桿空壓機特點：Features
采用渦輪增壓、空空中冷技術，使柴油機排放滿足USA/EPA TierI要求。
機組內部裝有三級、耐高粉塵、干式空氣濾清器，主濾芯和安全濾芯可更換?？刂泼姘迳涎b有空濾器維護指示燈。
兩個12V(1000CCA)蓄電池，并配有蓄電池斷電開關。柴油機排氣管配有防雨帽。
Turbocharged, air to air intercooler technology make diesel emissions meet the USA / EPA TierI requirements.
Internal unit is equipped with three stages, high dust resistant, dry air cleaner, main filter and safety cartridge can be replaced. There is air filter maintenance indicator on control panel.
Two 12V (1000CCA) batteries, and is equipped with a battery disconnect switch. Diesel exhaust pipe equipped with rain cap.
機組特點：
可鎖式邊門帶有氣動彈簧和鋁制鉸鏈，為維修保養帶來方便。
重型懸掛式行走系統，可減少傳遞到機組內部零部件的振動。
發動機和壓縮機采用防振安裝，可以減少振動，降低噪音。
Lockable side doors with pneumatic springs and aluminum hinges, bring convenience to maintenance.
Hanging heavy travel system, can reduce the vibration transmitted to the internal parts of the unit.
Engines and compressors using vibration-proof installation, can reduce the vibration and reduce noise.
安全保護Safety protection：
自動停機保護：排氣溫度過高，柴油機機油壓力低，柴油機冷卻液溫度高，柴油機冷卻液液位低，燃油油位過低。
自動與手動放氣閥。
所有液體的排放，包括：發動機冷卻液、發動機機油、壓縮機潤滑油、燃油都可以通過單獨的球閥非?？焖偃菀椎倪M行排放。球閥帶有安全塞，防止液體的意外排放。
Automatic shutdown protection: The excess exhaust temperature, low oil pressure of diesel, diesel engine coolant temperature is high, engine coolant level is low, the fuel level is too low.
Automatic and manual release valve.
All liquid emissions, including: engine coolant, engine oil, compressor oil, fuel can be discharged very quickly and easily by a separate valve. Ball valve with safety plug can prevent accidental discharge of the liquid.
電動移動螺桿空壓機技術參數 Electric portable screw air compressor technical parameter
|
型號 |
排氣量 |
柴油機功率 |
出口尺寸 |
外形尺寸 |
重量 |
描述 |
|
|
SHHK |
Capacity |
Power |
Outlet Diameter |
Dimension |
Weight |
Description |
|
|
MODEL |
Mpa |
m³/min |
KW/HP |
INCH |
WxDxH mm |
Kg |
/ |
|
HKDY-55 |
0.7 |
10.0 |
55/75 |
G1" G11/4" |
2400x1700x1750 |
1900 |
2輪帶罩 2wheels with cover |
|
0.8 |
9.5 |
||||||
|
1.0 |
8.5 |
||||||
|
1.3 |
7.3 |
||||||
|
HKDY-75 |
0.7 |
13.5 |
75/100 |
G1" G11/2" |
2700x1750x1800 |
2200 |
2輪帶罩2wheels with cover |
|
0.8 |
12.6 |
||||||
|
1.0 |
11.5 |
||||||
|
1.3 |
10.0 |
||||||
|
HKDY-90 |
0.7 |
16.0 |
90/125 |
G1" G11/2" |
2700x1750x1800 |
3200 |
2輪帶罩2wheels with cover |
|
0.8 |
15.2 |
||||||
|
1.0 |
14.0 |
||||||
|
1.3 |
12.5 |
||||||
|
HKDY-110 |
0.7 |
21.2 |
110/150 |
G1" G2" |
3000x1700x2100 |
3450 |
4輪帶罩4wheels with cover |
|
0.8 |
19.5 |
||||||
|
1.0 |
17.5 |
||||||
|
1.3 |
15.5 |
||||||
|
HKDY-132 |
0.7 |
24.2 |
132/175 |
G1" G2" |
3000x1700x2100 |
3600 |
4輪帶罩4wheels with cover |
|
0.8 |
23.5 |
||||||
|
1.0 |
20.5 |
||||||
|
1.3 |
17.5 |
||||||
|
HKDY-160 |
0.7 |
28.5 |
160/220 |
G11/2" G2" |
3500x1750x2500 |
3750 |
4輪帶罩4wheels with cover |
|
0.8 |
27.5 |
||||||
|
1.0 |
25.0 |
||||||
|
1.3 |
22.2 |
||||||
|
HKDY-185 |
0.7 |
32.0 |
185/250 |
G11/2" G2" |
3500x1750x2500 |
4000 |
4輪帶罩4wheels with cover |
|
0.8 |
31.0 |
||||||
|
1.0 |
28.1 |
||||||
|
1.3 |
25.2 |
||||||
柴油移動螺桿空壓機Diesel portable screw air compressor technical parameter
|
型號 |
容積流量 |
工作壓力 |
柴油機功率 |
重量 |
外形尺寸 |
描 述 |
|
SHHK |
Capacity |
Pressure |
Power |
Weight |
Dimension |
Description |
|
單位Unit |
M3/MIN |
MPa |
KW |
KG |
mm |
/ |
|
HK220CY-7 |
6 |
7 |
58 |
2000 |
2500×1900×1800 |
2輪帶罩2wheels with cover |
|
HK260CY-7 |
7.5 |
7 |
58 |
2000 |
2500×1900×1800 |
2輪帶罩2wheels with cover |
|
HK300CY-14 |
8 |
14 |
75 |
2000 |
3290×2030×1800 |
2輪帶罩2wheels with cover |
|
HK300CY-7 |
9 |
7 |
75 |
2000 |
3300×2030×1800 |
2輪帶罩2wheels with cover |
|
HK350CY-7 |
10 |
7 |
75 |
2000 |
3300×2030×1800 |
2輪帶罩2wheels with cover |
|
HK350CY-10 |
10 |
10 |
93 |
2000 |
3300×2030×1800 |
2輪帶罩2wheels with cover |
|
HK350CY-13 |
10 |
13 |
120 |
2500 |
3290×2030×1796 |
2輪帶罩2wheels with cover |
|
HK400CY-13 |
11 |
13 |
132 |
2500 |
3500×2100×2050 |
2輪帶罩2wheels with cover |
|
HK425CY-7 |
12 |
7 |
132 |
2000 |
3300×2030×1800 |
2輪帶罩2wheels with cover |
|
HK425CY-10 |
12 |
10 |
132 |
2500 |
3500×2100×2050 |
2輪帶罩2wheels with cover |
|
HK425CY-12 |
12 |
12 |
132 |
2500 |
3500×2100×2050 |
2輪帶罩2wheels with cover |
|
HK460CY-13 |
13 |
13 |
132 |
2500 |
3500×2100×2050 |
2輪帶罩2wheels with cover |
|
HK460CY-13 |
13 |
13 |
132 |
2500 |
3500×2100×2050 |
4輪帶罩4wheels with cover |
|
HK460CY-17 |
13 |
17 |
132 |
4000 |
4100×1850×2200 |
4輪帶罩4wheels with cover |
|
HK530CY-8 |
15 |
8 |
132 |
4000 |
4100×1850×2200 |
4輪帶罩4wheels with cover |
|
HK560CY-13 |
16 |
13 |
132 |
4000 |
4100×1850×2200 |
4輪帶罩4wheels with cover |
|
HK600CY-7 |
17 |
7 |
132 |
2500 |
3500×2100×2050 |
2輪帶罩2wheels with cover |
|
HK600CY-14.5 |
17 |
14.5 |
194 |
4000 |
4100×1850×2200 |
4輪帶罩4wheels with cover |
|
HK650CY-17 |
18 |
17 |
194 |
4000 |
4100×1850×2200 |
4輪帶罩4wheels with cover |
|
HK700CY-13 |
20 |
13 |
194 |
4000 |
4100×1850×2200 |
4輪帶罩4wheels with cover |
|
HK780CY-14.5 |
22 |
14.5 |
360 |
4000 |
4100×1850×2200 |
4輪帶罩4wheels with cover |
